Specifications

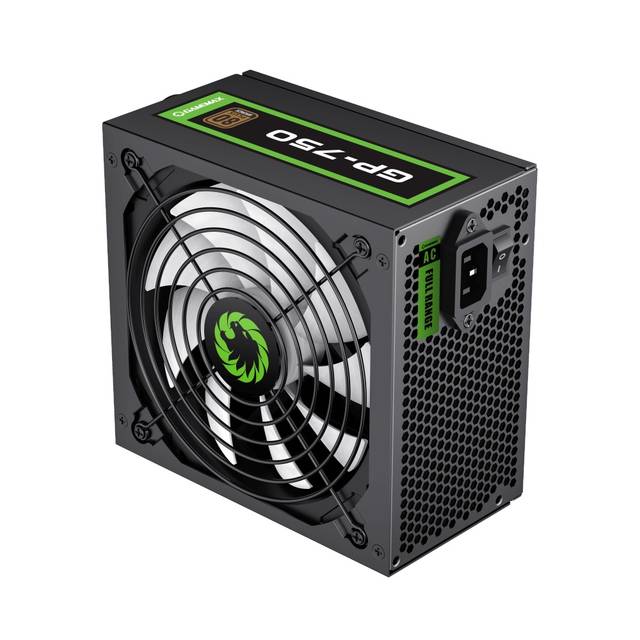

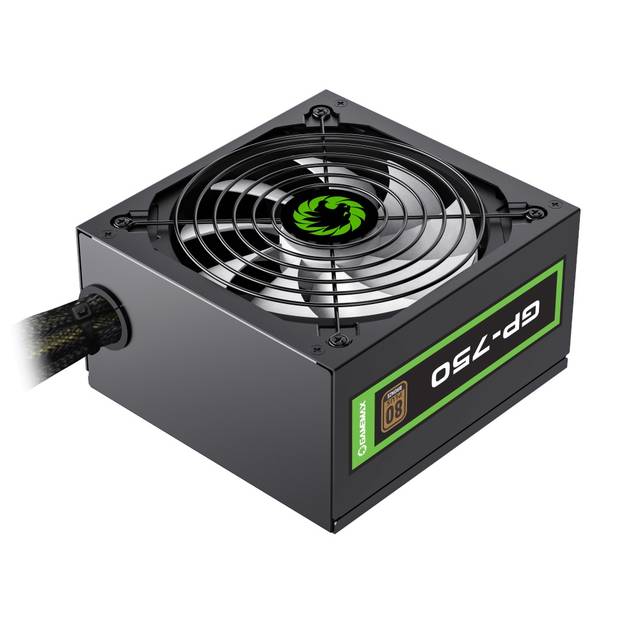

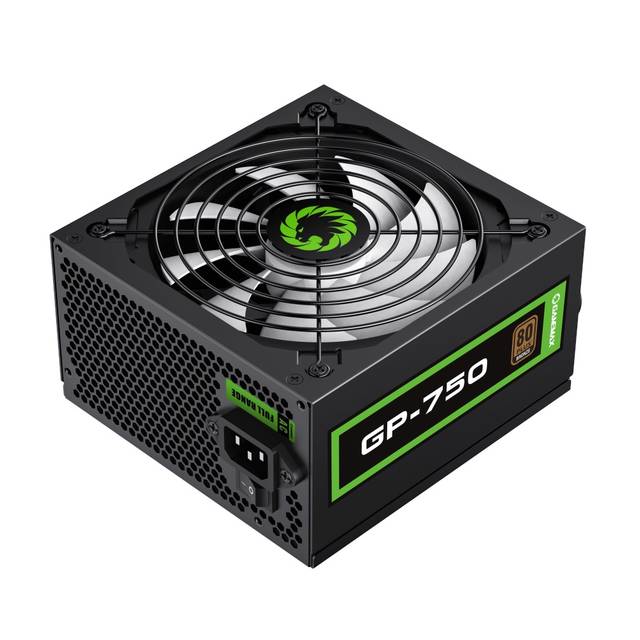

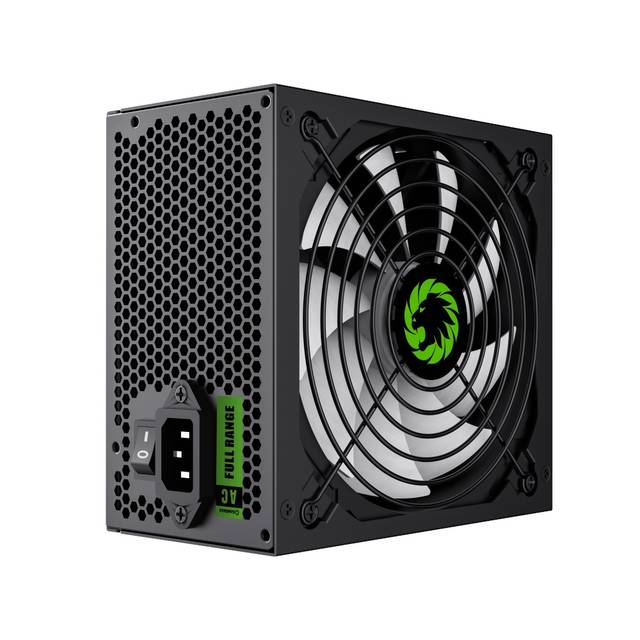

• Mfr Part Number:GP-750
• Features:
  • Engineered with high-end components, Elegant black PSU casing with black flat cable
  • DC-to-DC technology ensures optimal power efficiency and stable output across all components
  • ATX12V 80 PLUS Bronze Certified power supply ensures high energy efficiency and minimizes heat generation
  • Extended 12V Rail for high compatibility and extremely high current output
  • Longer 12V8pin(4+4) pins up to 650mm is easy for high-end tower chassis installation

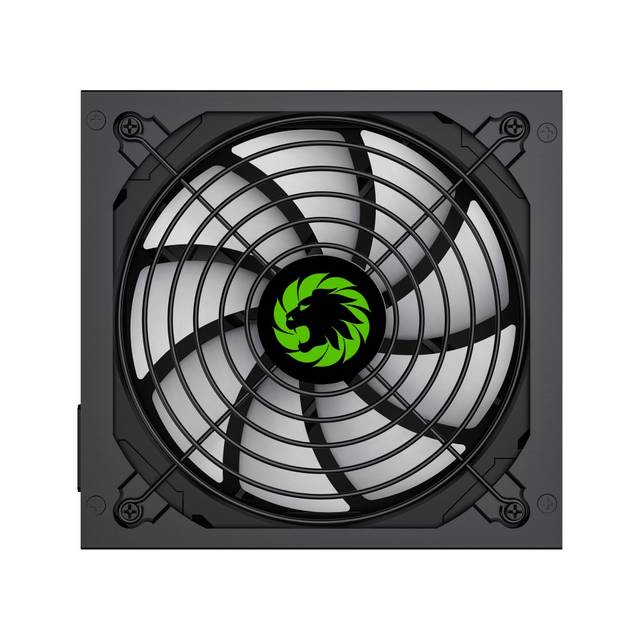

  • 14cm silent black fan provides silent operation and efficient cooling system with smart thermal sensor
  • Features six essential safety mechanisms providing system stability with OVP/UVP/ OPP/OCP/OTP/SCP
  • Safety Certified by TUV Lab with CE strict standards
• Input Voltage: 100-240 VAC
• Input Current: 15-5A
• Input Frequency Range: 50-60Hz
• Output: +3.3V 18A; +5V 18A; +12 54A; -12V 0.5A; +5VSB 2.5A
• PFC: Active PFC (>.99)
• Power Good Signal: 100-150 ms
• Hold Up Time: >10ms
• Efficiency: > 85% (87% max)
• MTBF: > 100,000 Hours
• Protection: OVP / UVP / SIP / OCP / OLP / OPP / SCP
• Power: 750W
• Operation Temperature: 0-40C
• Safety: CE / FCC / CB
• Cooling: 140mm Ultra Silent Fan
• Noise: <25dba
• 80 Plus Certified: Yes - 80 Plus Bronze
• Has Mains Plug: No
• Colour: Black
• Dimensions: 158mm x 85mm x 150mm (W x H x D)
• What's In The Box: Power Supply, User Manual, Screws
