Specifications

• Mfr Part Number: GX-850 Modular
• Features:
  • The classic efficiency over 92%, The free-cable technology featured

  • GameMax GX series power supply 80+ Gold certified that offers great value to gamers and system builders

  • FDB Fan reduces heat during heavy load while keeping the noise level down, Designed with stability and durability, GX Series is the perfect choice to power your systemsLLC+DC--DC high-efficiency 80+ Gold APFC Certified

  • DC-DC integrated energy storage inductor, quiet and highly efficient100-240Vac full voltage input

  • Multiple PCIE interfaces fully support the latest graphics cardsIntegrated all solid capacitor, Free-Cable module output, lower loss powerFarad resonance capacitor is stable and efficient

  • 105C mainstream capacitor has long life and smooth output

  • The temperature-controlled fan is extremely quiet

  • Total SEVEN levels of protection, OTP, OCP, SCP, OVP, UVP, OPP, SIP

  • All black flat pure copper output line, efficient and powerful

  • Components by SMT produced, Quick heat dissipation and more stable
• Type: ATX
• Cabling (Wired/Semi-Modular/Fully-Modular): Fully-Modular

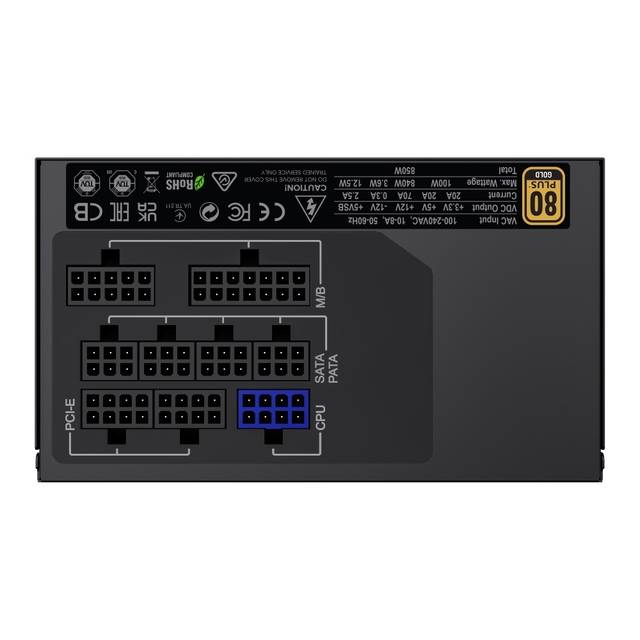

• Connectors:
  • 20+4 Pin MB: 550mm*1
  • 4+4 Pin CPU: 650+100mm*1
  • SATA: 400+150+150mm*2
  • Molex 4 Pin: 400+150+150mm*1
  • 6+2 Pin PCIe: 600+150mm*2
• Output Currents For DC Inputs: 3.3V 20A; 5V 20A; 12V 70A; -12V 0.3A; +5VSB 2.5A
• Input Voltage: 100-240Vac
• Input Current: 15-8A
• Input Frequency: 50-60Hz
• PFC: APFC
• Power Good Signal: 100-150ms
• Hold Up Time: 16ms( 80% load)
• Efficiency: 80PLUS GOLD
• Protection: OVP, UVP, OPP, OCP, SCP, OTP
• Wattage: 850W
• Maximum Wattage: Same lable power
• Cooling: 12cm Smart slient fan
• Operation Temperature: 0 C to 40 C
• Certification&Safety: CB, TUV, cTUVus, CE, LVD, FCC
• 80 Plus Certified: 80PLUS GOLD
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
