Specifications

• Mfr Part Number: MB324SP-B
• Features:

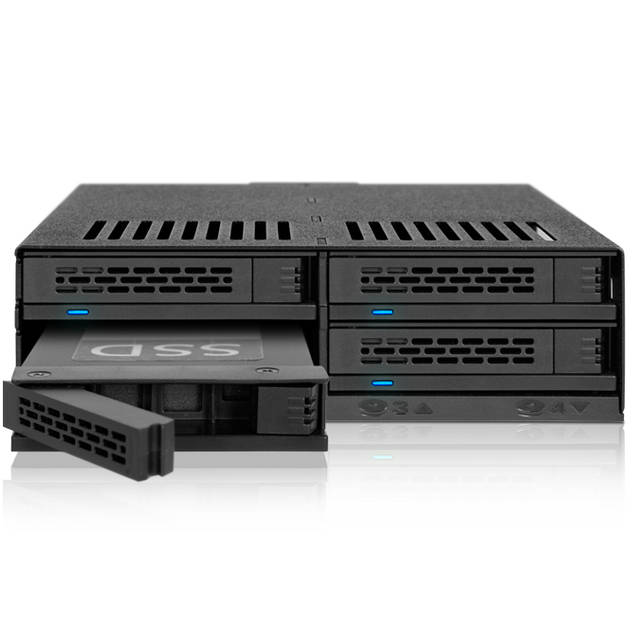

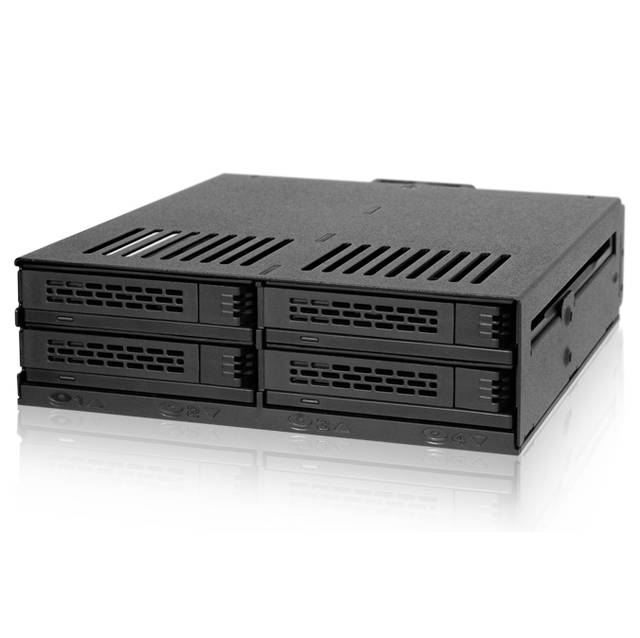

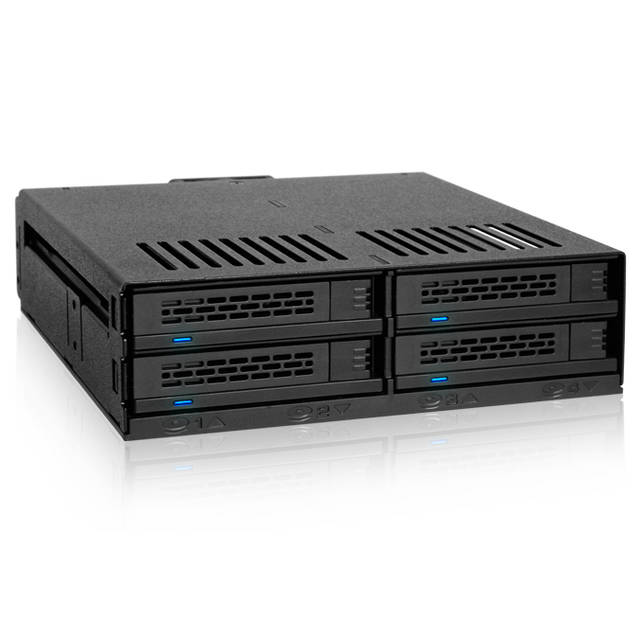

  • Supports up to 4 x 2.5" SATA/SAS HDD/SSD into a single 5.25" bay
  • Support SATA 6Gbps or SAS single channel (requires SAS host)
  • Hot-swappable bays for quick drive installation
  • Accommodates 2.5" drives with 7mm, 9mm &12.5mm Height
  • Active Power Technology (APT) - only powers up if there is drive installed in the drive bay

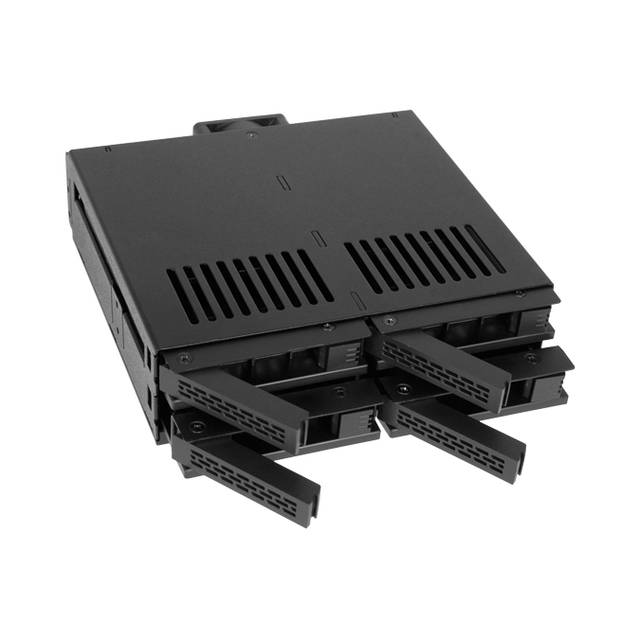

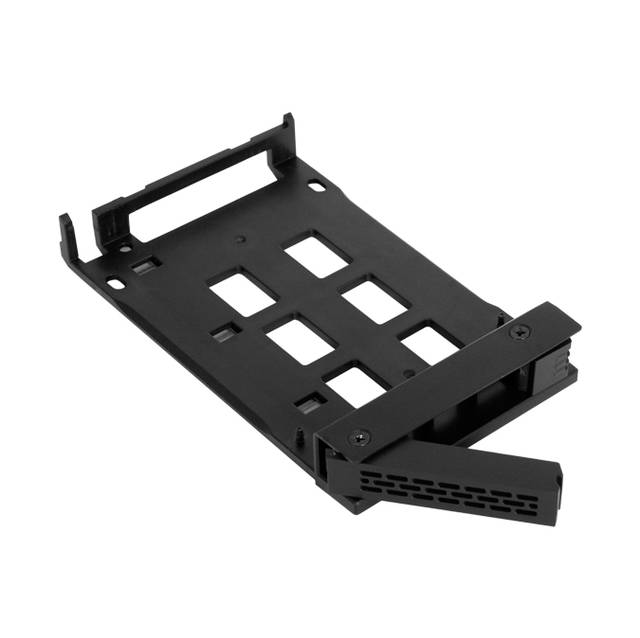

  • Removable ExpressTray system for tool-less, easy installation

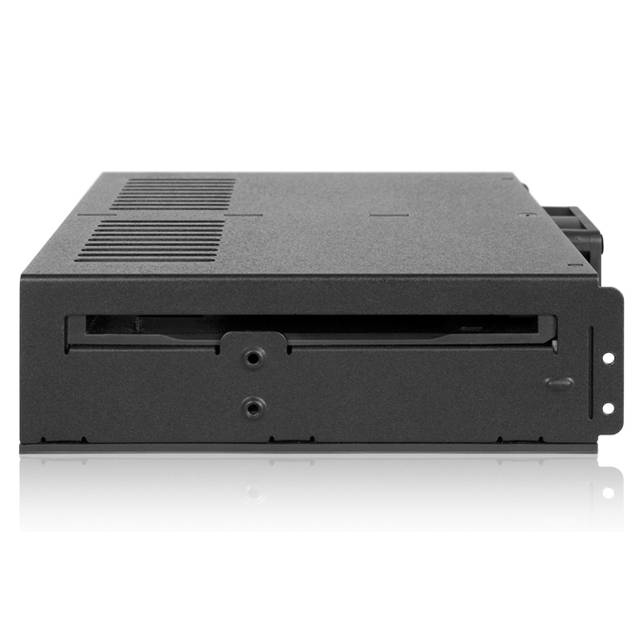

  • Optional bottom mounted screw holes for increased stability

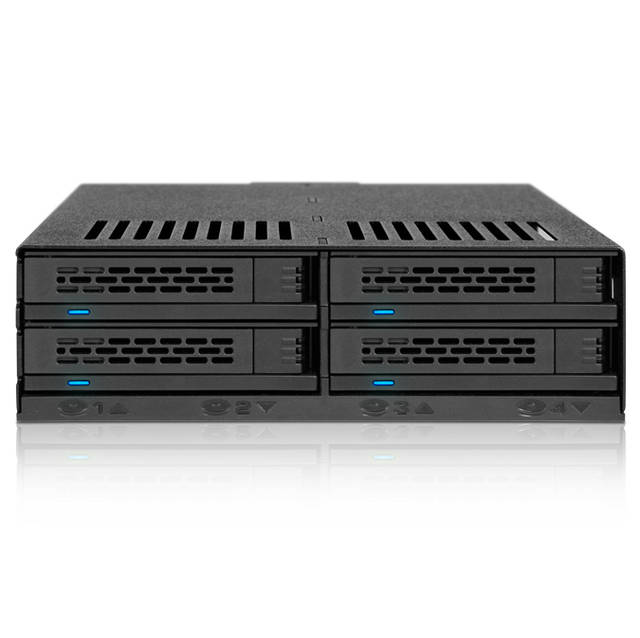

  • Blue indicator LED provided for each bay
  • 40mm upgradeable fan for drive cooling
  • 2 pin and 3 pin fan headers to support many aftermarket fan upgrades
  • Single 15pin SATA power connection powers all 4 drives
  • Locking latch design for both 7 pin SATA connector and 15 pin power adapter
  • Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings
  • Metal case with heavy duty ABS tray and door latch
  • Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5" HDD or SSD
• Structure: Plastic and metal
• Drive Fit: 4x 2.5" SATA or SAS (single channel) HDD/SSD
• Compatible Drive Heights: 7mm, 9.5mm & 12.5mm
• Device Fit: Single 5.25" Half Height Device Bay
• Host Interface: 4x 7pin SATA Port
• Transfer Rate: Up to 6Gb/s (depending on hard drive speed)
• Insert & Extract Connection Via: Direct SAS/ SATA hard drive connection
• Power Input: Single 15pin SATA Power Port

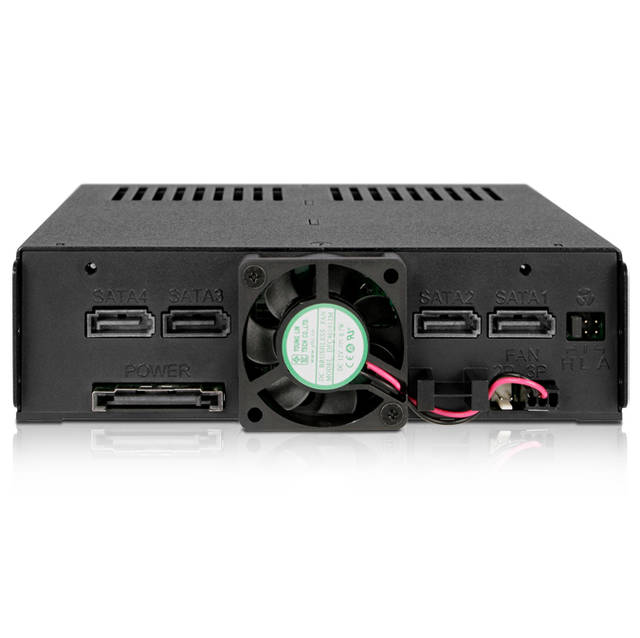

• Drive Cooling: 40mm Rear Cooling Fan
• Fan Speed Control: High / Low / Auto jumper
• Indicator:
  • Power: Solid blue LED
  • HDD Access: Blinking blue LED
• Color: Black
• Dimensions (WxLxH): 41.3 x 145.8 x 140.5 mm
• Weight: 440.0 g
